Denago Fat Tire Step over

Denago Fat Tire Step over

$1,799.00 USD
$1,799.00 USD
Sale Sold out
Size

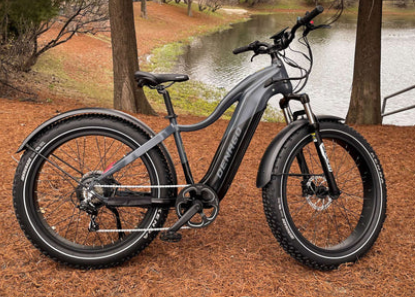

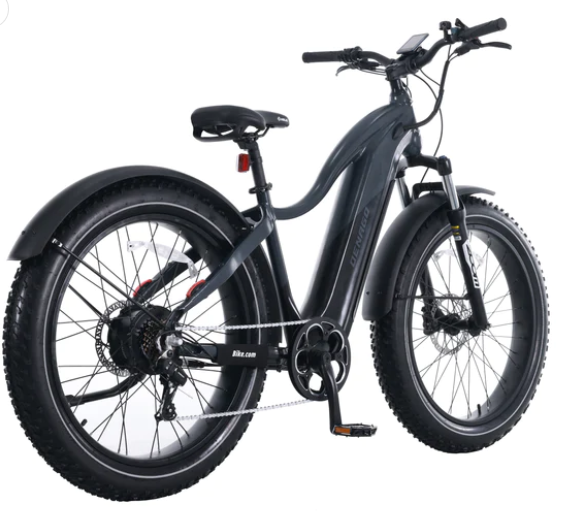

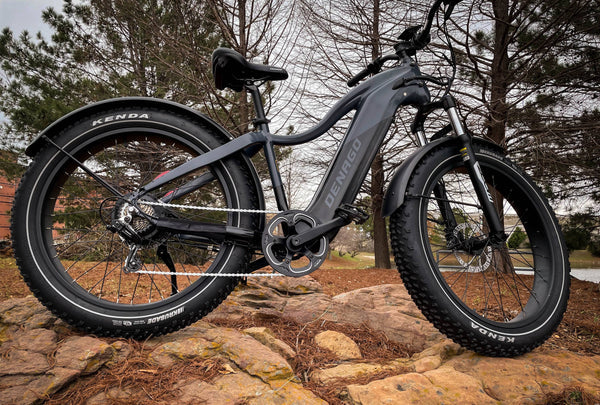

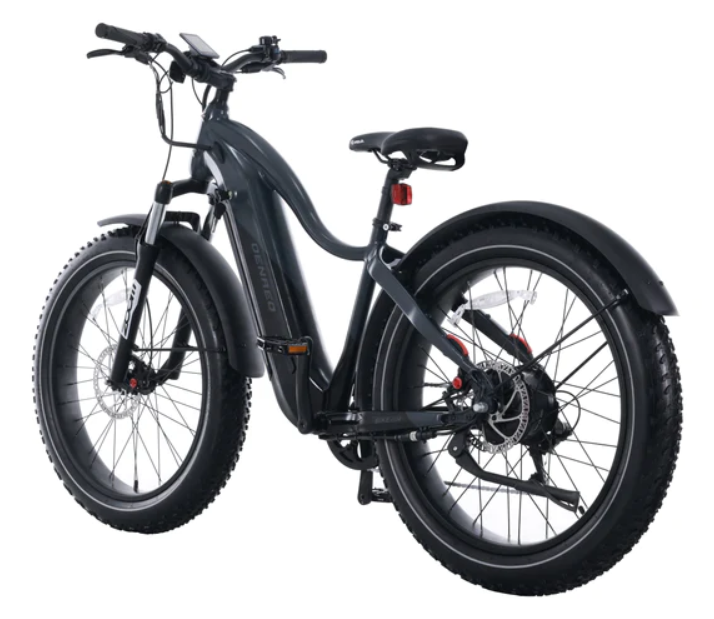

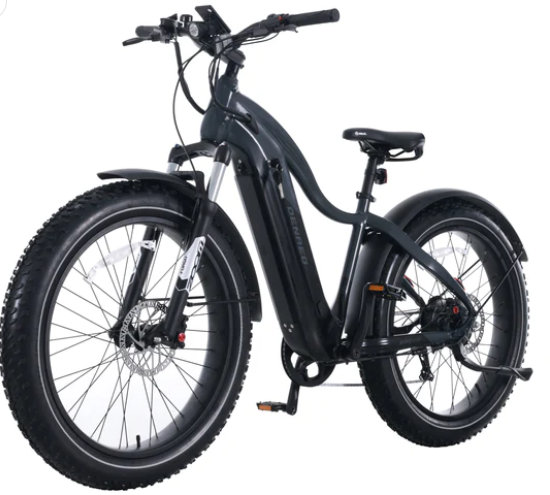

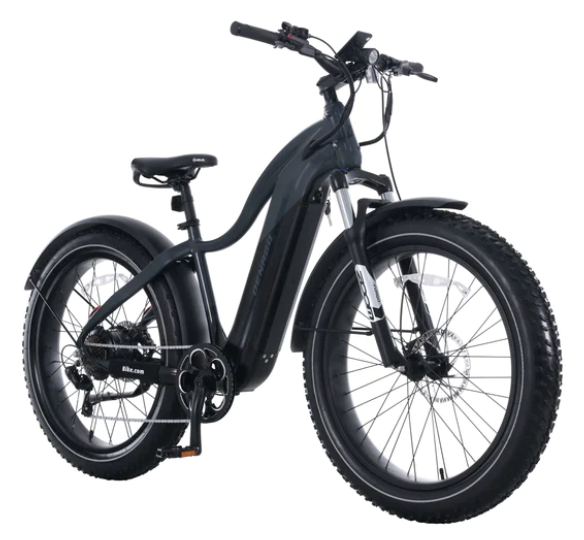

The Denago Fat Tire eBike is one of the best-value torque sensor fat eBikes available today, and now it's available in a traditional "top tube" frame style. This fat tire eBike includes a huge list of accessories: integrated lighting, fenders, and kickstand; plus our largest available 921.6 Wh battery for extended range, a color display, and suspension fork.

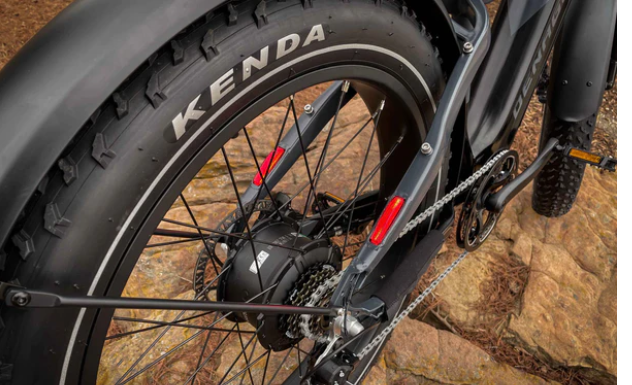

The Fat Tire eBike uses a premium Bafang rear hub motor, plus an upgraded torque sensor for the most natural pedaling feel on off-road surfaces.

In Store Pickup Only

View full details

  • Testing Feature 2

    testing feature 2 stuff

  • Feature 3 stuff

    testing again

See Full Component Specifications

FRAME AND FORK

Frame: 6061-T6 Aluminum Alloy, Top Tube style

Fork: Zoom Suspension model 879, 80mm travel with hydraulic lockout

Kickstand: included

DRIVETRAIN

Pedals: Platform, aluminum alloy, 9/16” with reflectors

Crankset:  Aluminum alloy, 170mm, 48 tooth chainring

Bottom Bracket:  Sealed, square taper, with torque sensor, English thread

Rear Derailleur:  Shimano Tourney, 7 speed

Freewheel: Shimano Tourney, 7 speed, 14-28 teeth

Shifter:  Shimano Tourney, 7 speed

Chain: KMC Z-Series, 3/32”

COCKPIT

Handlebar: Zoom aluminum alloy, 31.8mm diameter, 700mm long

Handlebar Bell: included

Grips: Black rubber, lock-on style

Stem:  Zoom aluminum alloy, 31.8mm clamp, 1 ⅛” threadless

Headset: 1 ⅛”, sealed, threadless

Saddle: Comfort with lift handle

Seatpost: Zoom aluminum alloy, 31.6mm diameter, 300mm length

Seatpost Clamp: Zoom, quick release

BRAKES

Levers:  Hydraulic disc brake with motor cut-off

Calipers: Hydraulic disc brake

Rotors:  180mm, 6 bolt type

WHEELS

Tires:  Kenda 26 x 4”, K-Shield puncture protection with safety reflective stripe

Tubes:  Kenda 26 x 4”, schrader valve

Rims: Aluminum Alloy, 36 holes, 26"

Hubs: Front - nutted, 36 holes, disc brake Rear - Bafang, nutted 36 holes, disc brake

Spokes: Front - 36 Black 13 gauge spokes Rear - 36 Black 12 gauge spokes

Nipples:  Brass

WEIGHT AND PAYLOAD

Complete eBike with battery: 79 lbs

Maximum rider weight: 300 lbs

Maximum cargo capacity:  55 lbs on the optional seatstay-mounted rear rack 20 lbs on the optional headtube-mounted front rack

WHAT'S IN THE BOX

Complete eBike Keys Lithium-Ion battery 3 Amp fast charger Bell Quickstart guide Wheel reflectors Assembly Tools (pedal wrench, multi-tool)

COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture eBikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our eBikes in a timely fashion. Thanks for understanding!
